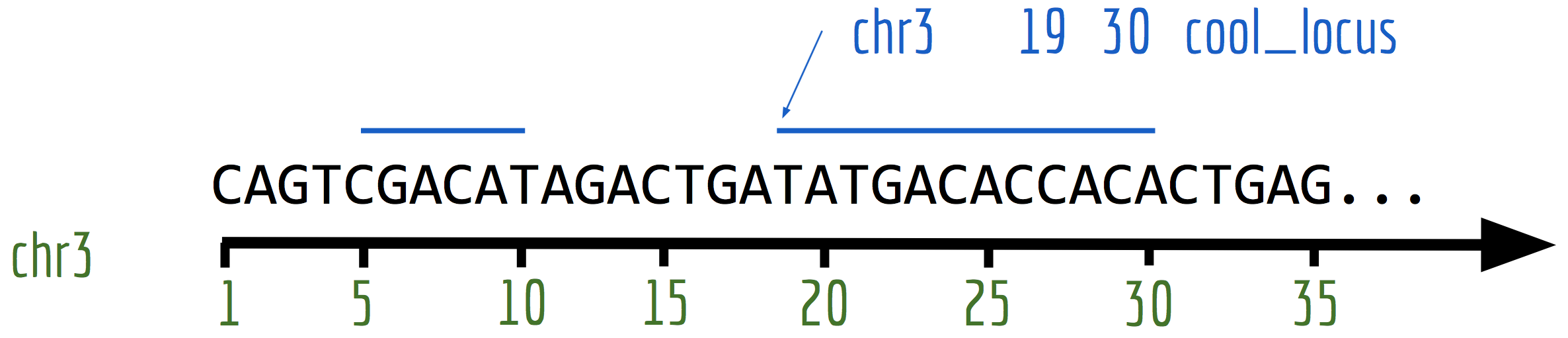

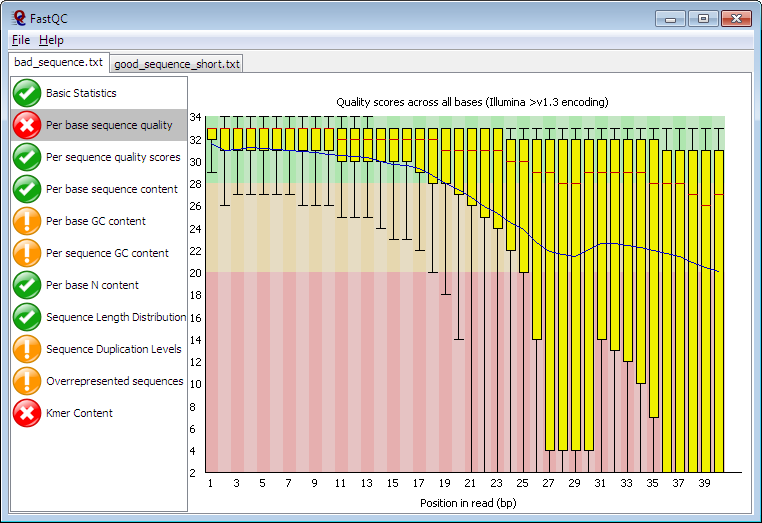

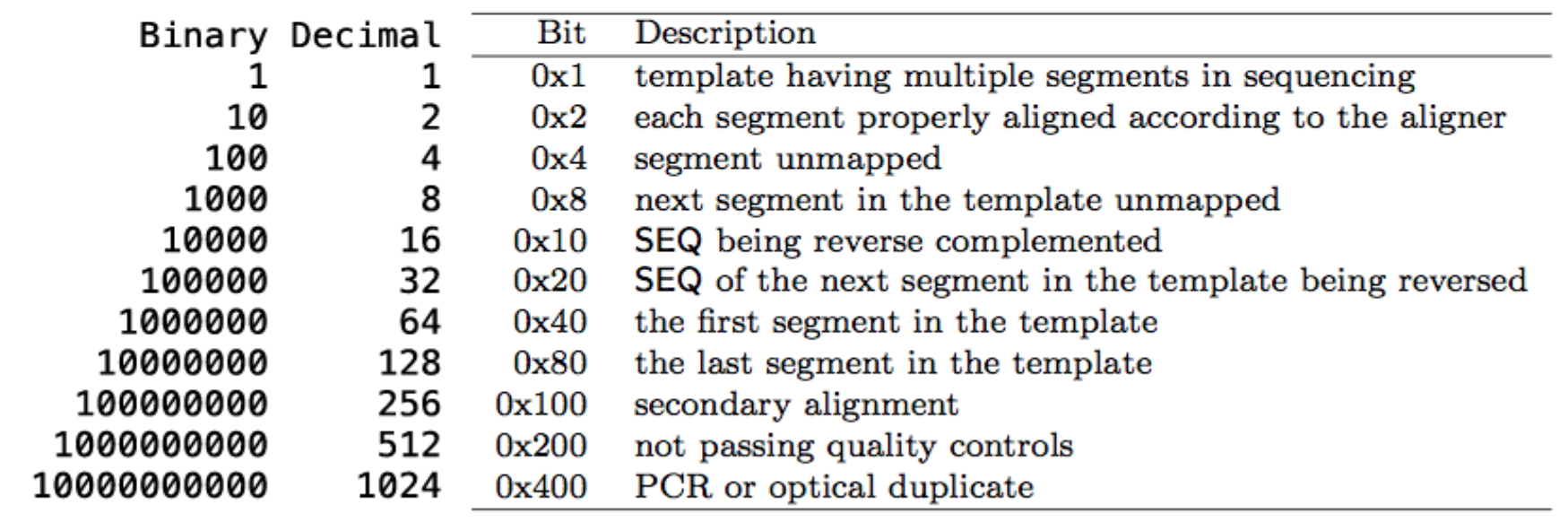

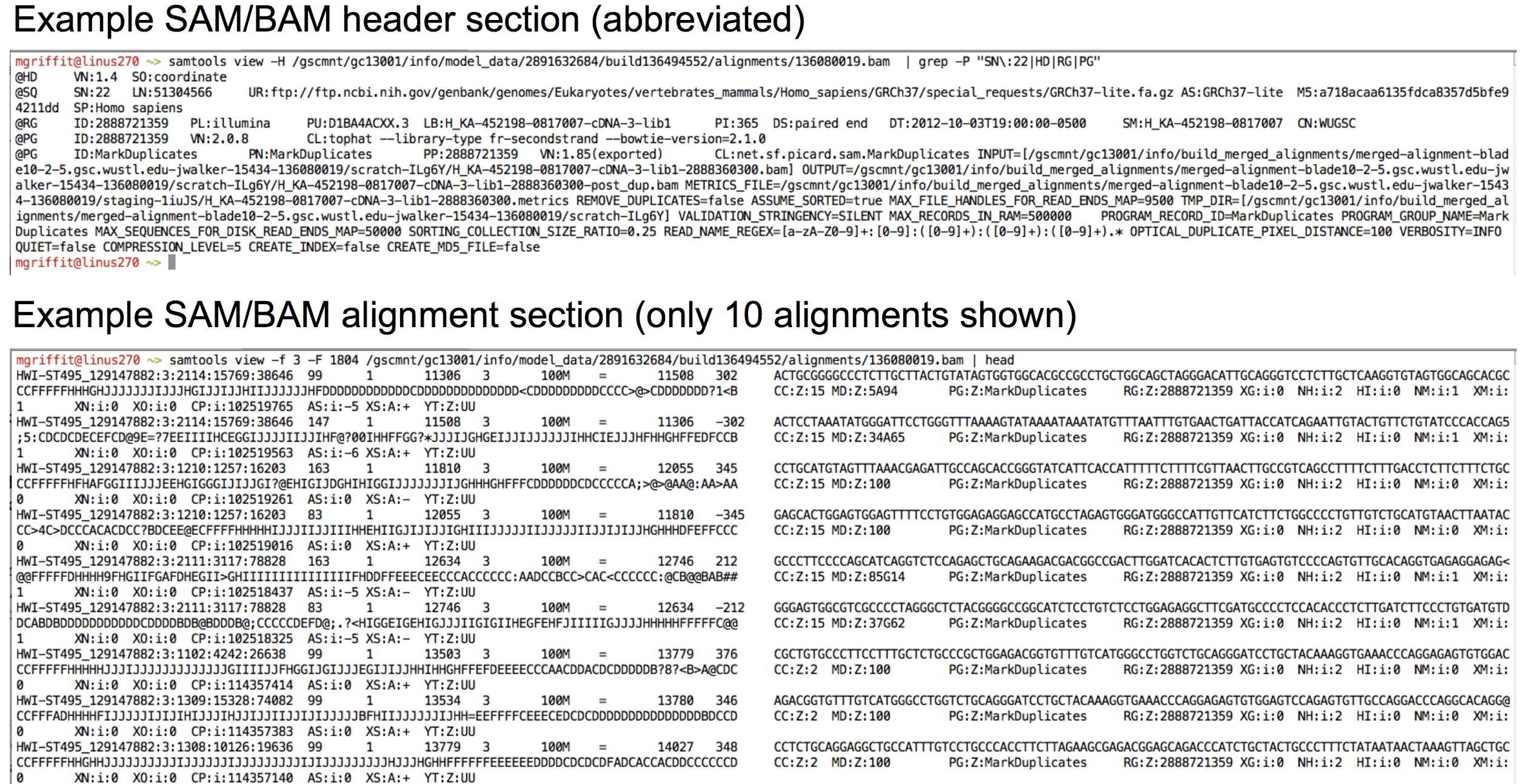

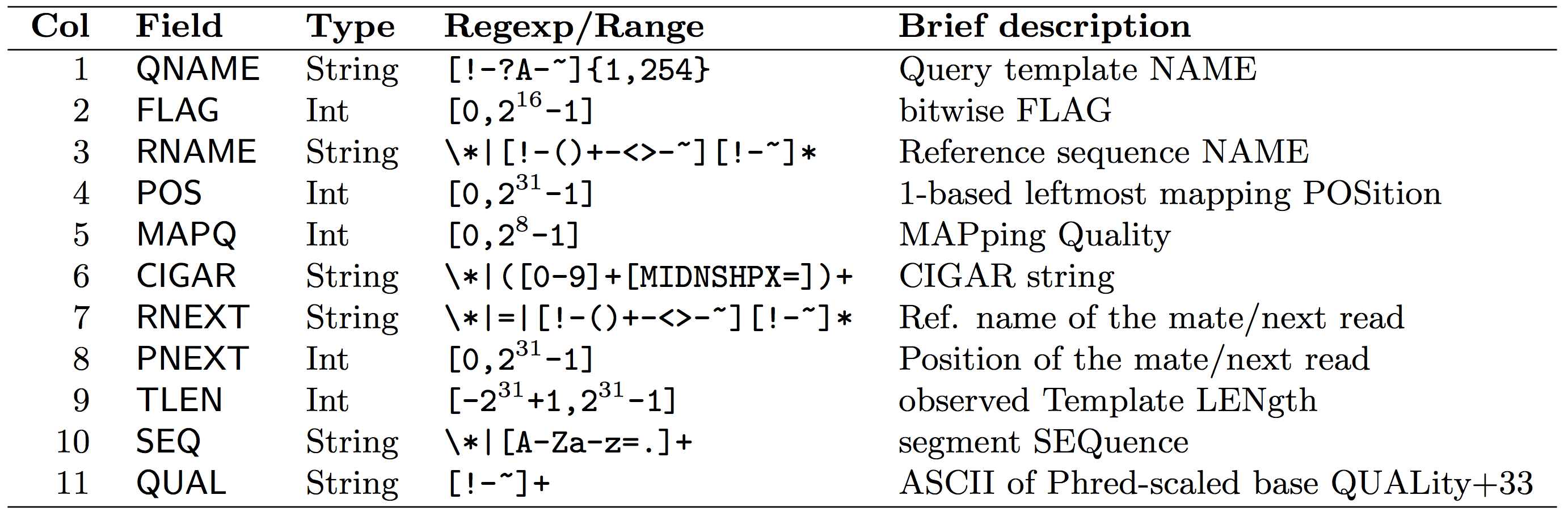

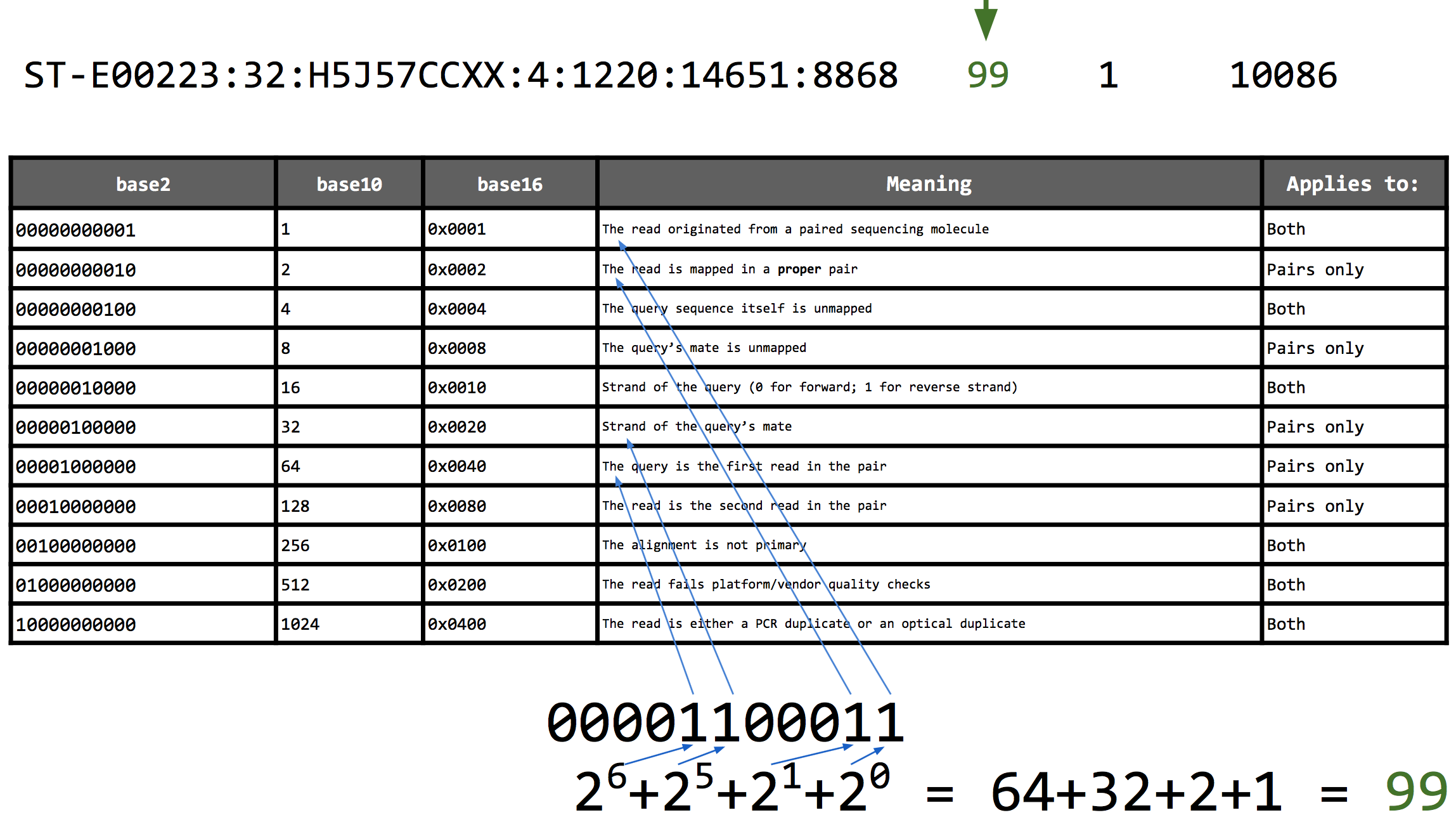

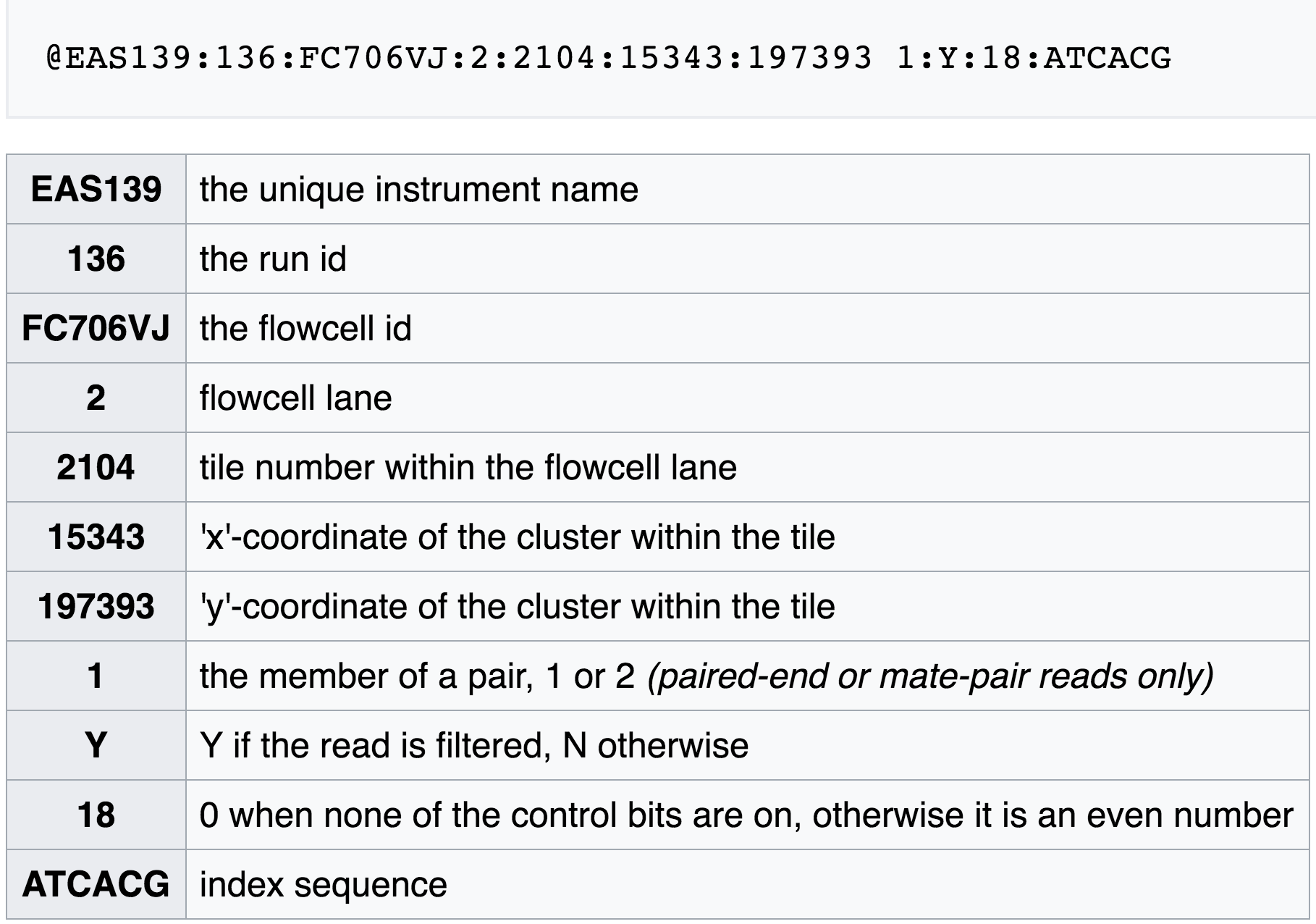

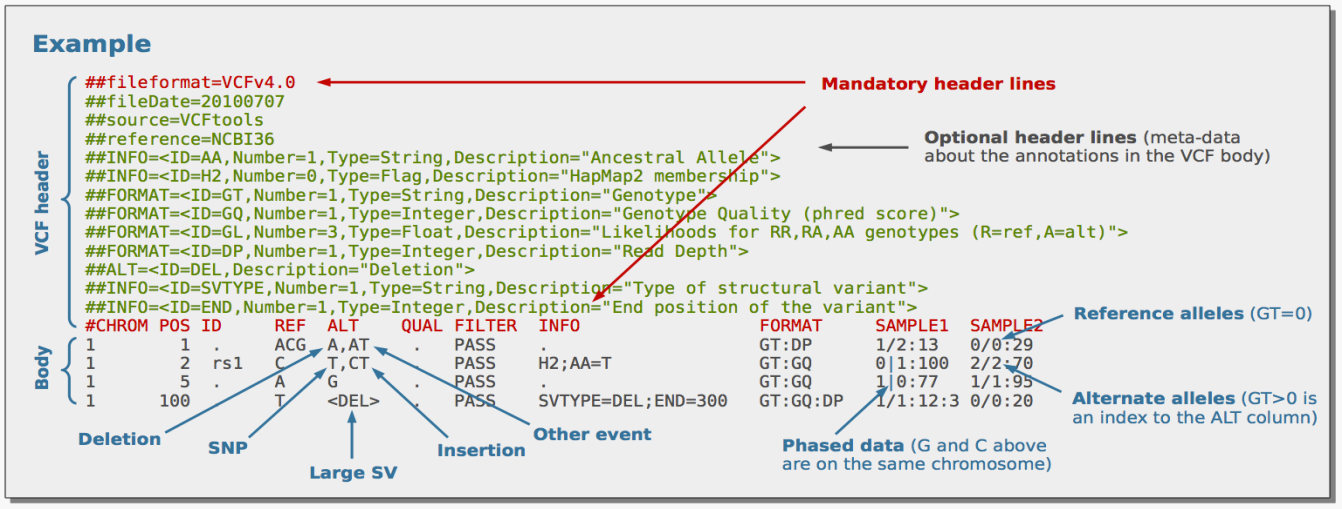

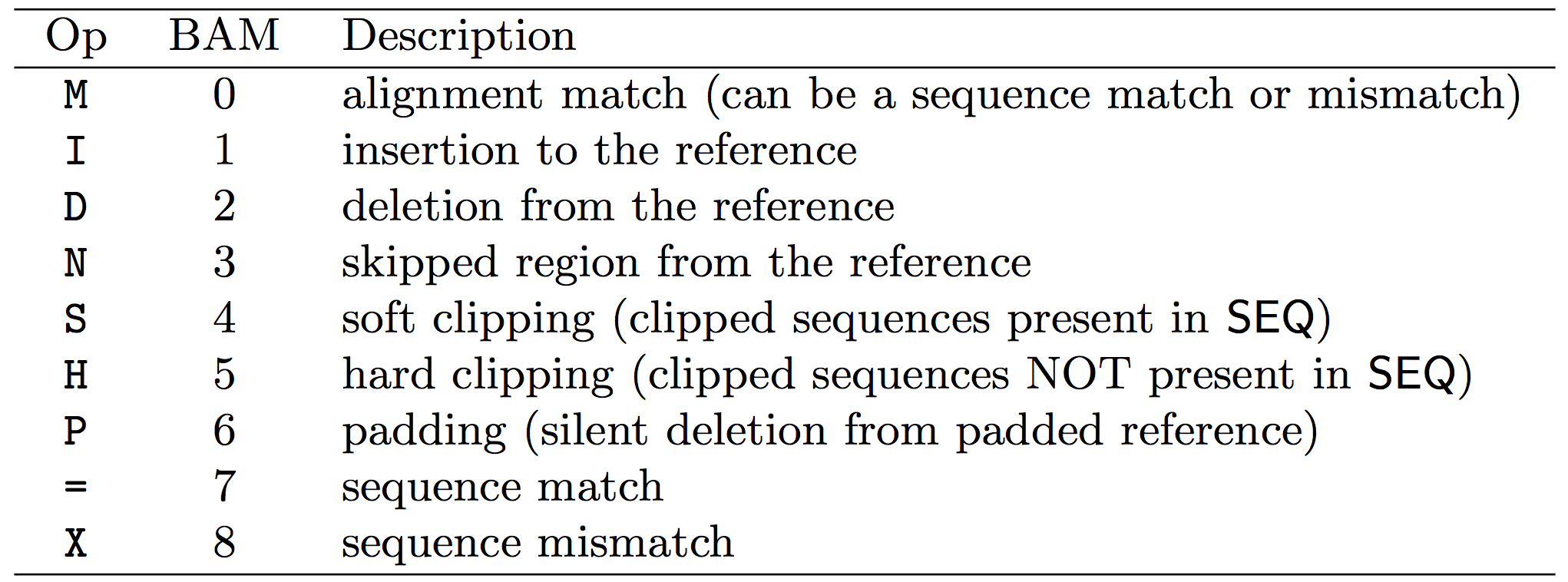

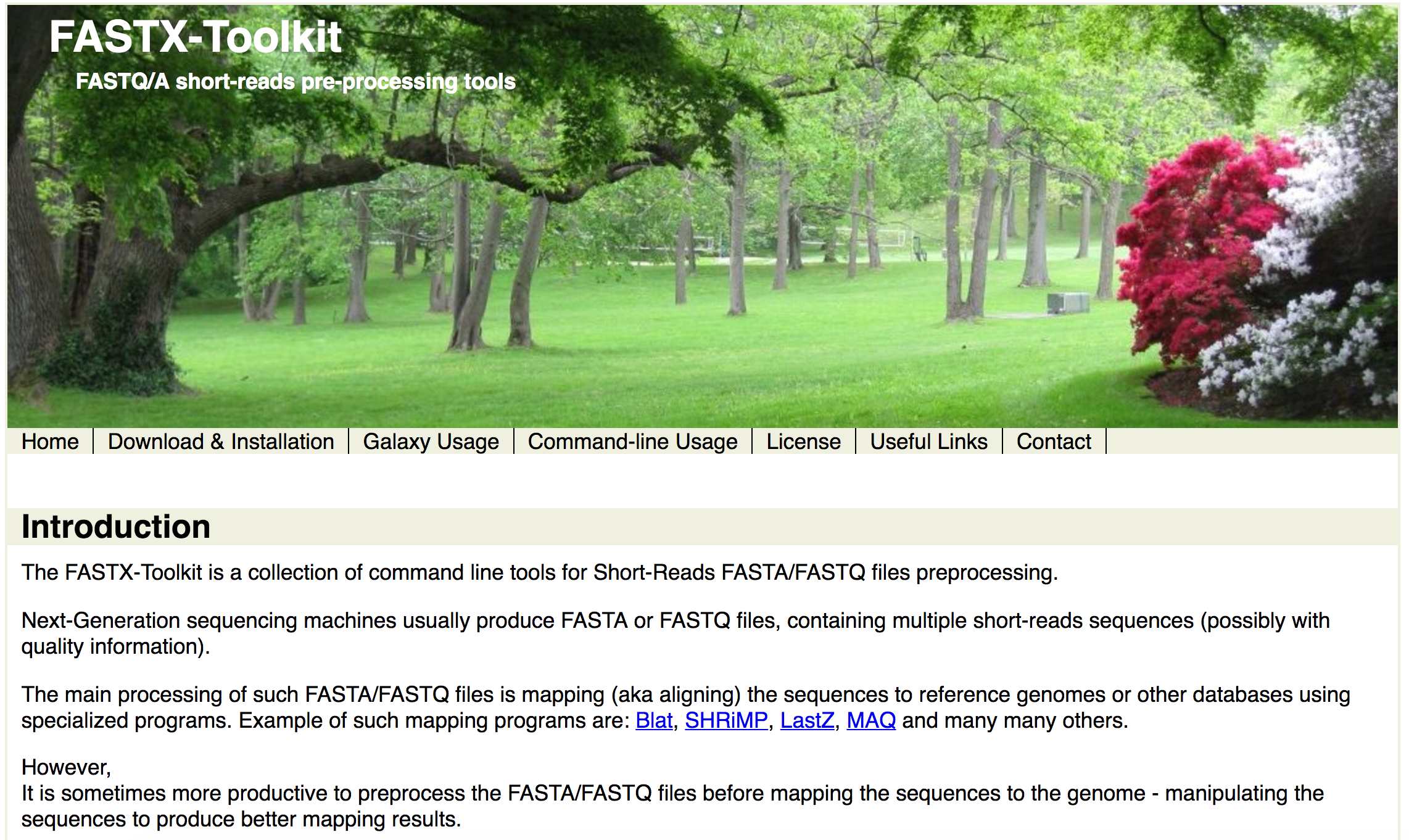

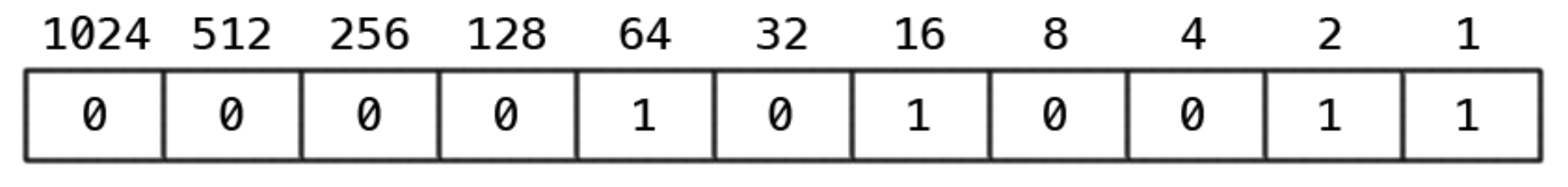

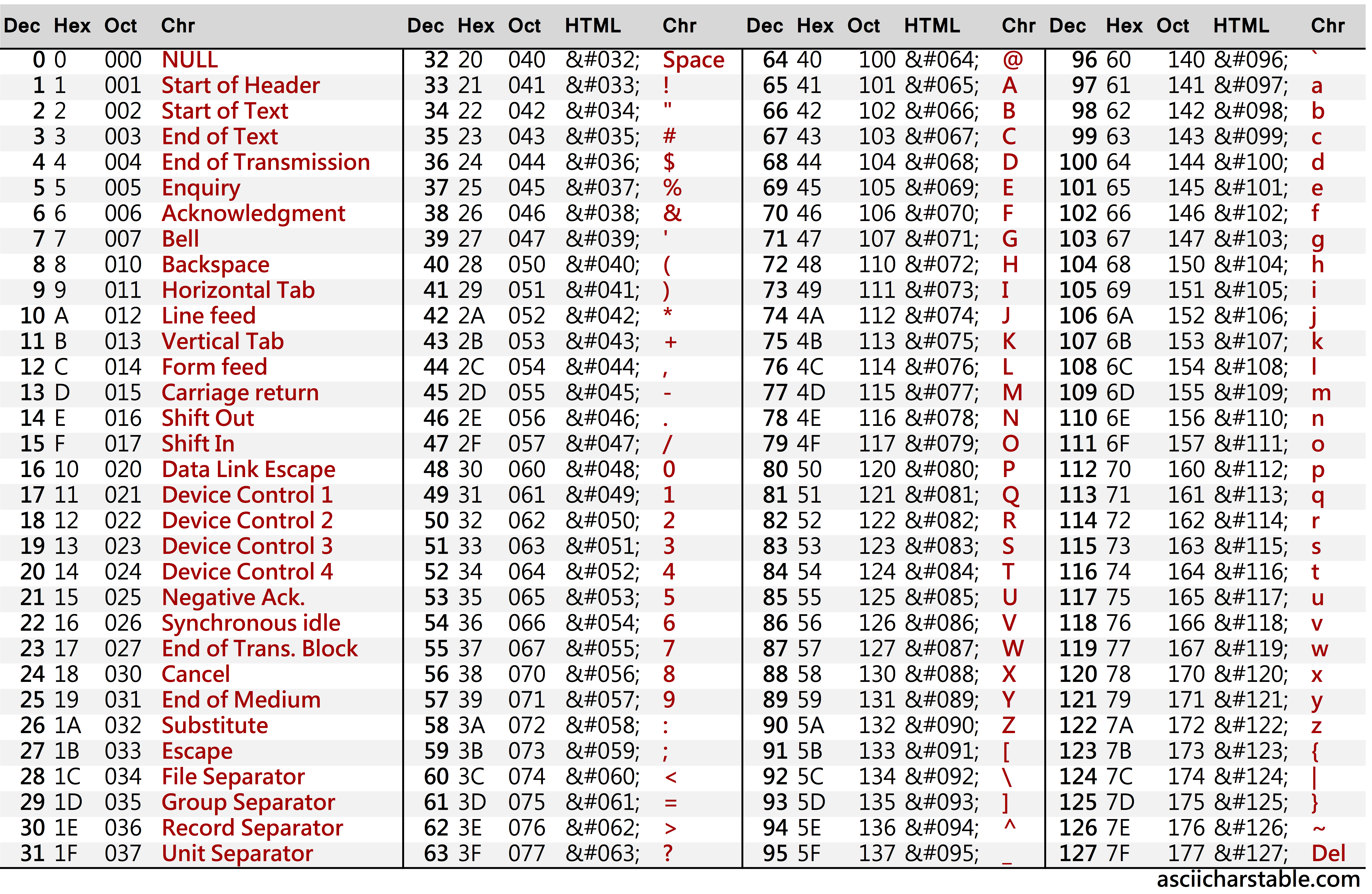

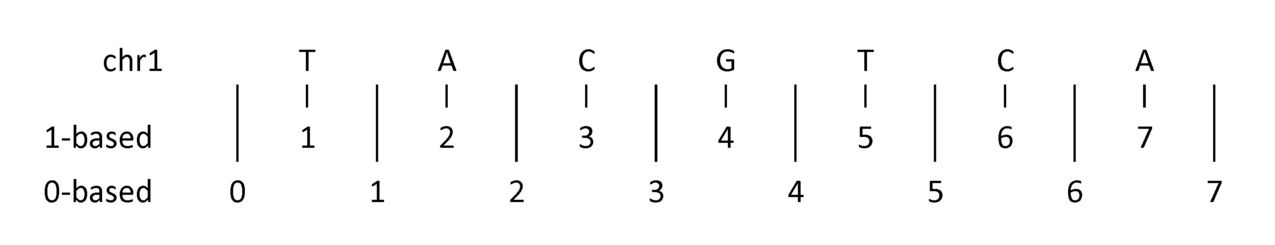

class: center, middle, inverse, title-slide # Genomic data formats ### Mikhail Dozmorov ### Virginia Commonwealth University ### 02-10-2021 --- ## The reference genome as a coordinate system .center[ <img src="img/genomic_coordinates.png" height = 300> ] --- ## Binary and "plain text" files **"Plain text" ("flat") file formats** - Information often structured into lines and columns - Human-readable, processable with simple command-line tools - Space is often saved through the means of archiving (e.g. zip) and human-readable information coding (e.g. flags) **Binary file formats** - Not human-readable (not intended for reading) - Require special software for processing (programs intended for plain text processing will not work properly on them, e.g. `wc`, `grep`) - Efficient storage, (significant) reduction to file size when compared to a plain text counterpart (e.g. 75 % space saved) --- ## Some common file formats - **FASTA** - Simple collections of named DNA/protein sequences (text) - **FASTQ** - Extension of FASTA format, contains additional quality information. Widely used for storing unaligned sequencing reads (text) - **SAM/BAM** - Alignments of sequencing reads to a reference genome (text/binary) - **BED** - Region-based genome annotation information (e.g. a list of genes and their genomic locations) (text) - **GFF/GTF** - gene-centric annotations (text) - **(big)WIG** - continuous signal representation (text, binary) - **VCF** - variant call format, to store information about genomic variants (text) --- ## FASTA format - Origin in 1980’s FASTP/FASTA software packages for sequence similarity searching - Convenient format for storing/transferring simple sequence collections - Intended for both, nucleotide and protein sequences (FAST- A, "Fast-All") - Common output format of sequence databases – Input format for various tools --- ## FASTA format Each sequence entry consists of: - _a single line_ with sequence metadata, starting with the "greater-than" symbol (">") - _any number of lines_ representing the actual sequence ``` >SRR493818.1.1 HWUSI-EAS519_0001_FC61TCNAAXX:2:1:960:20843 length=54 NGTAAATCCCGTTACCTCTCTGAGCCTCGGTNNCCNNNNNTGTAAAAAGGNNNN >SRR493818.2.1 HWUSI-EAS519_0001_FC61TCNAAXX:2:1:961:7550 length=54 NACACTACAATGTAAAAGCTTGGCCTAACTTNNTTNNNNNGGCTGTTATTNNNN ``` --- ## FASTA format The nucleic acid codes that can be found in FASTA file: ``` A --> adenosine M --> A C (amino) C --> cytidine S --> G C (strong) G --> guanine W --> A T (weak) T --> thymidine B --> G T C U --> uridine D --> G A T R --> G A (purine) H --> A C T Y --> T C (pyrimidine) V --> G C A K --> G T (keto) N --> A G C T (any) - gap of indeterminate length ``` http://zhanglab.ccmb.med.umich.edu/FASTA/ --- ## FASTA format - Human genome is there! http://hgdownload.cse.ucsc.edu/goldenPath/hg38/chromosomes/ - Get chromosome Y sequence: ``` $ URL=http://hgdownload.cse.ucsc.edu/goldenPath/hg38/chromosomes/chrY.fa.gz $ wget $URL; mv chrY.fa.gz hg38.chrY.fa.gz # or $ curl $URL > hg38.chrY.fa.gz # Ungzip $ gzip -d hg38.chrY.fa.gz # Peek into the file $ head hg38.chrY.fa $ tail hg38.chrY.fa # How many lines $ wc -l hg38.chrY.fa # Look somewhere in the middle $ head -n 10000 hg38.chrY.fa | tail ``` --- ## Orienting in FASTA file - Do not run: ``` $ # grep > hg38.chrY.fa ``` - What this command will do? ``` $ grep ">" hg38.chrY.fa ``` - What this command will do? ``` $ grep -v ">" hg38.chrY.fa ``` --- ## chrY summary statistics - How long is chrY? ``` $ grep -v ">" hg38.chrY.fa | grep -o "[ATCGatcg]" | wc -l 26415043 ``` - How many adenosines are there? ``` $ grep -v ">" hg38.chrY.fa | grep -o -i "A" | wc -l 7886192 ``` --- ## Low-complexity regions - Approximately 45% of the human genome can currently be recognized as being derived from transposable elements - The majority are non-long terminal repeat (LTR) retrotransposons, such as LINE-1 (L1), Alu and SVA elements - Other low-complexity biases: CG- and AT-rich DNA - Represented by lower-case letters ``` GATCAAAGTGTCATACAGTAACAGCCCAGACAGACGATAGGTATGGCAGa aaagaaaaaaactaaaaaaaaaaaaaaaaaaaaaaaTCGCATGGGAAGTT TCCCCGCCTCCTCTTTGGCCATTCTGTGCCCGGAGATCAAAGTTCTCATT ``` --- ## The conversion of sequencing signal to a nucleotide sequence Nearly all sequencing technologies produce sequencing reads in **FASTQ** format Sequence ID Sequence Separator Quality scores ``` @SEQ_ID GATTTGGGGTTCAAAGCAGTATCGATCAAATAGTAAATCCATTTGTTCAACTCACAGTTT + !''*((((***+))%%%++)(%%%%).1***-+*''))**55CCF>>>>>>CCCCCCC65 ``` https://en.wikipedia.org/wiki/FASTQ_format --- ## Sequence ID .center[ <img src="img/seqid.png" height = 500> ] --- ## FASTQ quality scores (Phred scores) **PHRED Base quality (Q)** – integer value derived from the estimated probability (P) of the corresponding base being determined wrong `\(Q = -10*log_{10}(P_{err})\)` (rounded to nearest integer) - The _Ph_ in Phred comes from Phil Green, the inventor of the encoding - P might be computed in different ways, depending on the sequencing platform, but the meaning of Q remains the same Peter J. A. Cock, Christopher J. Fields, Naohisa Goto, Michael L. Heuer, and Peter M. Rice, Nucleic Acids Res. 2010 https://www.ncbi.nlm.nih.gov/pmc/articles/PMC2847217/ http://www.gs.washington.edu/faculty/green.htm --- ## FASTQ quality scores (Phred scores) **PHRED Base quality (Q)** – integer value derived from the estimated probability (P) of the corresponding base being determined wrong - A higher quality score is better (>=30 is considered "good") .center[ <img src="img/phred_table.png" height = 300> ] --- ## ASCII table `\(ASCII(char) = Q + 33\)` - Phred + 33 encoding scheme is currently used .center[ <img src="img/ascii-chars-table-landscape.png" height = 450> ] .small[ http://www.asciicharstable.com/_site_media/ascii/ascii-chars-table-landscape.pdf ] --- ## FASTQC - quality control - Java program, HTML output .center[ <img src="img/fastqc.png" height = 400> ] .small[ - http://www.bioinformatics.babraham.ac.uk/projects/fastqc/ - FASTQC manual: http://www.bioinformatics.babraham.ac.uk/projects/fastqc/Help/ - Video tutorial how to interpret, https://www.youtube.com/watch?v=bz93ReOv87Y ] --- ## fastx toolkit: manipulating FASTQ and FASTA files .center[ <img src="img/fastx.png" height = 450> ] http://hannonlab.cshl.edu/fastx_toolkit/ --- ## fastx toolkit: manipulating FASTQ and FASTA files ``` fastx_quality_stats -h fastx_quality_stats -Q 0 -i file.fastq -o fastx_report.txt head fastx_report.txt fastx_trimmer -h fastx_trimmer -f 1 -l 100 -i file.fastq -o file_trimmed.fastq ``` --- ## The Sequence Alignment/Map format (SAM) - Intended for storing read alignments against reference sequences - Has a binary version with good software support (BAM format) The SAM format consists of two sections: **Header section** - Used to describe source of data, reference sequence, method of alignment, etc. **Alignment section** - Used to describe the read, quality of the read, and nature alignment of the read to a region of the genome SAM format specification https://samtools.github.io/hts-specs/SAMv1.pdf --- ## BAM file format of aligned data - BAM is the binary version of a SAM file. Smaller, but not easily readable - Compressed using lossless BGZF format - Other BAM compression strategies are a subject of research. See ‘CRAM’ format for example http://www.internationalgenome.org/faq/what-are-cram-files/ --- ## BAM file format of aligned data - BAM files are usually indexed. An index is stored alongside the BAM file with a ".bai" extension - Indexing aims to achieve fast retrieval of alignments overlapping a specified region without going through the whole alignments. - BAM must be sorted before indexing. Depending on the downstream tools, sort by - Name - Coordinate --- ## SAM example .center[ <img src="img/sam_example.png" height = 500> ] --- ## SAM/BAM header section - Describes source of data, genome, method of alignment, etc. - Each section begins with ‘@’ followed by a two-letter record type code. These are followed by two-letter tags and values ``` @HD The header line VN: format version SO: Sorting order of alignments @SQ Reference sequence dictionary SN: reference sequence name LN: reference sequence length SP: species @RG Read group ID: read group identifier CN: name of sequencing center SM: sample name @PG Program PN: program name VN: program version ``` --- ## SAM/BAM alignment section .center[ <img src="img/sam_alignment.png" height = 350> ] https://samtools.github.io/hts-specs/SAMv1.pdf --- ## Using SAM flags to filter subsets of reads - 12 bitwise flags describing the alignment - "Bitwise" – values contributing to the sum are powers of two (each can be represented by a single positive bit in a binary number) - These flags are stored as a binary string of length 11 - Value of "1" indicates the flag is set. e.g. 00100000000 - All combinations can be represented as a number from 1 to 2048 (i.e. `\(2^{11}-1\)`). This number is used in the BAM/SAM file. You can specify "required" or "filter" flags in `samtools view` command using the `-f` and `-F` options, respectively --- ## Using SAM flags to filter subsets of reads - Unambiguous – there is exactly one possible decomposition of each FLAG sum - Each value contributing to the sum represents one fulfilled condition .center[ <img src="img/sam_flags.png" height = 300> ] .small[ https://broadinstitute.github.io/picard/explain-flags.html https://samtools.github.io/hts-specs/SAMv1.pdf ] --- ## SAM – bitwise FLAG (example) .center[ <img src="img/flag_example.png" height = 500> ] --- ## SAM – bitwise FLAG (example) FLAG 83 - Binary numbers: FLAG 1010011 is a sum of 1000000, 10000, 10 and 1 - Easy to break down, but binary numbers are long - In decimal numbers: FLAG 83 is a sum of 64, 16, 2 and 1 - 83 = 64 + 19 = 64 + (16 + 3) = 64 + 16 + (2 + 1) - What does FLAG 83 mean? .center[ <img src="img/flag_example1.png" height = 100> ] --- ## CIGAR string .center[ <img src="img/sam_cigar.png" height = 300> ] - The CIGAR string is a sequence of base lengths and associated "operations" that are used to indicate which bases align to the reference (either a match or mismatch), are deleted, inserted, represent introns, etc. - 81M859N19M - Read as: A 100 bp read consists of: 81 bases of alignment to reference, 859 bases skipped (an intron), 19 bases of alignment https://samtools.github.io/hts-specs/SAMv1.pdf --- ## Tools to work with SAM/BAM files - **samtools** - view, sort, index, QC, stats on SAM/BAM files, and more - **sambamba** - view, sort, index, merge, stats, mark duplicates. fast laternative to `samtools` - **picard** - QC, validation, duplicates removal and many more utility tools https://github.com/samtools/samtools https://lomereiter.github.io/sambamba/index.html https://broadinstitute.github.io/picard/ --- ## SAMTOOLS Commands: Manipulating SAM/BAM ``` -- Indexing dict - create a sequence dictionary file faidx - index/extract FASTA index - index alignment -- Editing calmd - recalculate MD/NM tags and '=' bases fixmate - fix mate information reheader - replace BAM header rmdup - remove PCR duplicates targetcut - cut fosmid regions (for fosmid pool only) addreplacerg - adds or replaces RG tags -- Viewing flags - explain BAM flags tview - text alignment viewer view - SAM<->BAM<->CRAM conversion depad - convert padded BAM to unpadded BAM ``` --- ## SAMTOOLS Commands: Manipulating SAM/BAM ``` -- File operations collate - shuffle and group alignments by name cat - concatenate BAMs merge - merge sorted alignments mpileup - multi-way pileup sort - sort alignment file split - splits a file by read group quickcheck - quickly check if SAM/BAM/CRAM file appears intact fastq - converts a BAM to a FASTQ fasta - converts a BAM to a FASTA -- Statistics bedcov - read depth per BED region depth - compute the depth flagstat - simple stats idxstats - BAM index stats phase - phase heterozygotes stats - generate stats (former bamcheck) ``` http://quinlanlab.org/tutorials/samtools/samtools.html --- ## BED format - Text-based, tab-separated list of genomic regions - Each region is specified by a reference sequence and the start and end positions on it - Optionally, each region can have additional properties defined – E.g. strand, name, score, color - Intended for visualizing genomic annotations in IGV, UCSC Genome Browser (context of expression, regulation, variation, conservation, ...) http://genome.ucsc.edu/FAQ/FAQformat.html#format1 --- ## BED format 3 mandatory columns (must be in correct order) - "chrom" – chromosome - "chromStart" – the first base of the region with respect to the chromosome (counting starts from 0) - "chromEnd" – the first base after the region with respect to the chromosome - [chromStart, chromEnd) allows easy region-length calculation - Optional fields: "name", "score", "strand", other annotation columns ``` chr1 115263684 115263685 rs10489525 0 + chr12 97434219 97434220 rs6538761 0 + chr14 102360744 102360745 rs7142002 0 + chr16 84213683 84213684 rs4150167 0 - chr2 206086170 206086171 rs4675502 0 + chr20 14747470 14747471 rs4141463 0 + ``` --- ## BED format – optional fields - 9 additional optional fields, their order is binding (unlike with SAM format). If n optional fields are included, they will be considered to be the first n optional fields from the format specification - All regions must have the same optional fields (unlike with SAM format) Most important optional fields: - "name" – name of the region - "score" – score value between 0 and 1000 (read-count, transformed p-value, "quality", ...) - Can be interpreted as shades of grey during visualization - "strand" – either "+" or "-" (not "1"/"-1") - BED12 format specification available https://genome.ucsc.edu/FAQ/FAQformat.html#format1.7 --- ## Tools to work with BED files - **bedtools** - universal tools for manipulating genomic regions - **bedops** - complementary to `bedtools`, providing additional functionality and speedup https://bedtools.readthedocs.io/en/latest/ https://bedtools.readthedocs.io/en/latest/ --- ## GFF/GTF file format - Generic feature format for storing genomic annotation data - **GFF** - Generic Feature Format - describes gene-centric elements - **GTF** - Gene Transfer Format - similar to GFF, but more restrictive - GFF specifications: https://github.com/The-Sequence-Ontology/Specifications/blob/master/gff3.md - GTF specifications: http://www.gencodegenes.org/gencodeformat.html - More about file formats, http://journals.plos.org/ploscompbiol/article/file?type=supplementary&id=info:doi/10.1371/journal.pcbi.1004393.s008 --- ## GFF/GTF file format - Tab delimited text file (with optional header lines): - contig (chromosome) - source - type - start - end - score - strand - phase - attributes ``` wget ftp://ftp.ensembl.org/pub/release-89/gtf/homo_sapiens/Homo_sapiens.GRCh38.89.gtf.gz ``` GTF gene annotations: http://www.ensembl.org/info/data/ftp/index.html --- ## WIG format - Text format to represent continuous signal - "wiggle" format - variable step format - for data with irregular intervals ``` variableStep chrom=chrN [span=windowSize] chromStartA dataValueA chromStartB dataValueB ... etc ... ... etc ... ``` - fixed step format - for data with regular intervals ``` fixedStep chrom=chrN start=position step=stepInterval [span=windowSize] dataValue1 dataValue2 ... etc ... ``` --- ## Tools to work with WIG format - **Wiggler** - converts aligner reads to continuous WIG signal - **WiggleTools** - Basic operations on the space of numerical functions defined on the genome. Works with multiple genomic file formats. Operates on single file or pairs of files https://genome.ucsc.edu/goldenpath/help/wiggle.html https://code.google.com/archive/p/align2rawsignal/ https://github.com/Ensembl/WiggleTools --- ## VCF format - Variant Call Format (VCF) is a flexible and extendable format for variation data .center[ <img src="img/vcf_format1.png" height = 400> ] --- ## VCF format - CHROMO: chromosome / contig - POS: the reference position with the 1st base having position 1 - The value in POS refers to the position of the first base in the string. For indels, the reference string must include the base before the event (and this must be reflected in POS) - ID: an id; rs number if dbSNP variant - REF: reference base - ALT: comma sepearated list of alternate non-ref alleles called on at least one of the samples - If no alternate alleles then the missing value should be used “.” - QUAL: phred-scaled quality score of the assertion made in ALT (whether variant or non-variant) - FILTER: PASS if the position has passed all filters (defined in meta-data) - INFO: additional information --- ## VCF Format .center[ <img src="img/vcf_appnote.png" height = 400> ] https://www.ncbi.nlm.nih.gov/pmc/articles/PMC3137218/pdf/btr330.pdf --- ## Mutation Annotation Format (MAF) - Tab-delimited - In the context of human cancer, MAF files come in two types--protected and somatic - TCGA Protected MAFs include all sequenced mutations for the given technique, and these are further classified as either somatic mutations or other mutations grouped under germline mutations - TCGA Somatic MAFs retain mutations validated in a secondary assay to ensure it is not due to sequencing error and of those that remain unvalidated retain mutations within protein coding regions or splice sites. All other mutations are filtered out https://wiki.nci.nih.gov/display/TCGA/Mutation+Annotation+Format+%28MAF%29+Specification+-+v2.4 https://www.biostars.org/p/69222/ https://github.com/mskcc/vcf2maf --- ## Formats use different coordinate systems - **BED**: 0-based, half-open - **GFF**: 1-based, closed - **SAM**: 1-based, closed - **BAM**: 0-based, half-open - **VCF**: 1-based, closed .center[ <img src="img/bed_coordinates.jpg" height = 200> ] https://www.biostars.org/p/84686/ --- ## Formats use different chromosome naming conventions - The UCSC and Ensembl databases name their chromosomes differently. - By convention, UCSC chromosomes start with chr while Ensembl chromosome names do not. - UCSC will call the fifth chromosome chr5 and Ensembl will call it 5 --- ## A comparison of genomics data types .small[ | NGS technology | Total bases | Compressed bytes | Equivalent size | Core hours to analyse 100 samples | Comments | |--------------------------------------|-------------|------------------|-----------------|-----------------------------------|-----------------------------------------------------------------------| | Single-cell RNA sequencing | 725 million | 300 MB | 50 MP3 songs | 20 | >100,000 such samples in SRA, >50,000 from humans | | Bulk RNA sequencing | 4 billion | 2 GB | 2 CD-ROMs | 100 | >400,000 such samples in SRA, >100,000 from humans | | Human reference genome (GRCh38) | 3 billion | 800 MB | 1 CD-ROM | NA | | | Whole-exome sequencing | 9.5 billion | 4.5 GB | 1 DVD movie | 4,000 | \~1,300 human samples from 1000 Genomes Project alone | | Whole-genome sequencing of human DNA | 75 billion | 25 GB | 1 Blu-ray movie | 30,000 | \~18,000 human samples with 30x coverage from the TOPMed project alone | ]
